Features
1. Automatic reset thermal overload protector.
2. Maintenance-free, Oil-less design.
3. Easy storage for all accessories.
4. Fully enclosed unit insures safe easy operation.
5. Universal motor starts easily under low voltage conditions.
6. Providing 150PSI Max. working pressure for wider air-tools application.
7. Unique profile design.
8. Perfect compressor for home usage such as inflation, brad nailing, stapling, air brushing and more.
9. Hand carry.
10. With pressure gauges, pressure switch, safety valve.
Specification
Power Requirement
· Voltage: AC100V / AC 120V / AC 230V / AC 240V
· Operating Current: <9.0 Amps
Physical Dimension
· Length: 351.0 mm
· Width: 272.0 mm
· Height: 232.0 mm
· Net Weight: 6.2Kg(13.66lbs)
Pressure & Flow
· Max. Pressure: 150psi/10.34BAR
· Working Pressure: 0~150psi(0~10.34BAR)
· Air Flow Rate: @90psi(6.2BAR)/2.0CFM(57.0L/Min)
· Duration: 100% Duty Cycle
· Pump Up Time: 0~150psi/44sec
· Pressure switch: 150psi±5psi/OFF 120psi ±5psi /ON
Motor Style
· Universal motor

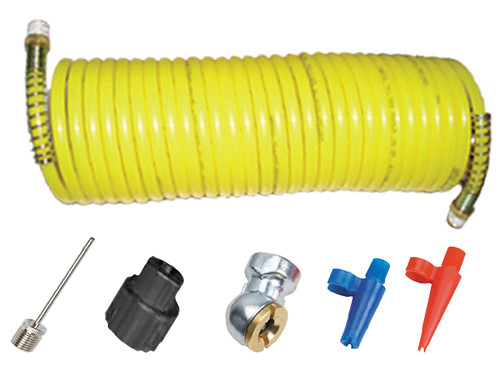

25 Feet air hose x 1PCS
Reducer x 1PCS
Tire chuck x 1PCS
Inflation Needle x 1PCS
Plastic Nozzles x 2PCS
Owner’s Manual x 1PCS |
