Features:
1. Automatic reset thermal overload protector.
2. Maintenance-free, Oil-less design.
3. Easy storage for all accessories.
4. Fully enclosed unit insures safe easy operation.
5. Universal motor starts easily under low voltage conditions..
6. Unique profile design.
7. Perfect compressor for home usage such as inflation, brad nailing, stapling, air brushing and more.
8. Hand carry.
9. With pressure gauges, pressure switch, safety valve.
Specification
Power Requirement
· Voltage: AC 230V
· Operating Current: <6.0 Amps
Physical Dimension
· Length: 482.0 mm
· Width: 263.0 mm
· Height: 370.0 mm
· Net Weight: 9.00Kg(19.84lbs)
Pressure & Flow
· Max. Pressure: 135psi/9.27BAR
· Working Pressure: 0~135psi(0~9.27BAR)
· Air Flow Rate: @90psi(6.2BAR)/2.0CFM(57.0L/Min)
· Duration: 100% Duty Cycle
· Pump Up Time: 0~135psi/44sec (Standard:≦55sec)
· Recovery Time: 110~135psi/11sec (Standard:≦15sec)
· Air tank: 1.5Gal
· Pressure switch: 135psi±5psi/OFF 105psi ±5psi /ON
Motor Style
· Universal motor

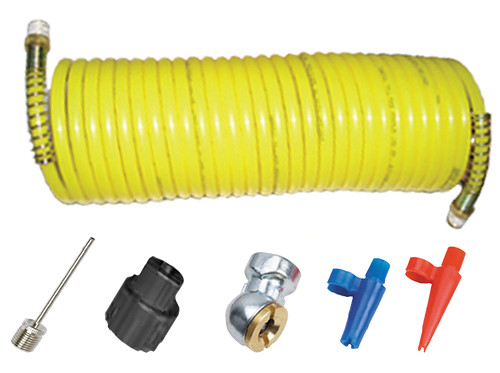

25 Feet air hose x 1PCS
Reducer (Plastic) x 1PCS
Tire chuck x 1PCS
Inflation Needle x 1PCS
Plastic Nozzles x 2PCS
Owner’s Manual x 1PCS

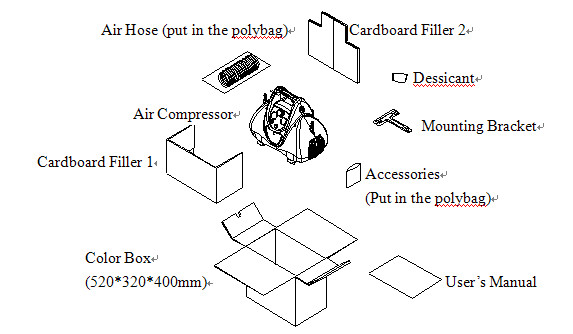

1Package Data
|
Color box size (L*W*H) |
520*320*400mm |
|
Gross Weight(kg) |
11.5KG |
|
Standard Packing |
1pcs/Carton |
Container Data
|
20’Container |
385 CTNS |
385*1=385pcs |
25.62CBM |
|
40’Container |
790 CTNS |
790*1=790pcs |
52.58CBM |
|
40’HQ Container |
948 CTNS |
948*1=948pcs | |
